Advanced Subsea Intervention Support & Technology (ASSIST)

Introducing ASSIST

In collaboration with international contractors and partners, we have developed the ASSIST (Advanced Subsea Intervention Support & Technology) pipeline repair system. Featuring large bespoke equipment, this unique system features first of its kind technology for this region.

Rapid Mobilization

Swift mobilization from its purpose built facility at KEZAD to Khalifa Port

Cost Reduction

Asset Risk Reduction

Subsea Pipeline Management

Pioneering Technology

Gas Supply Recovery

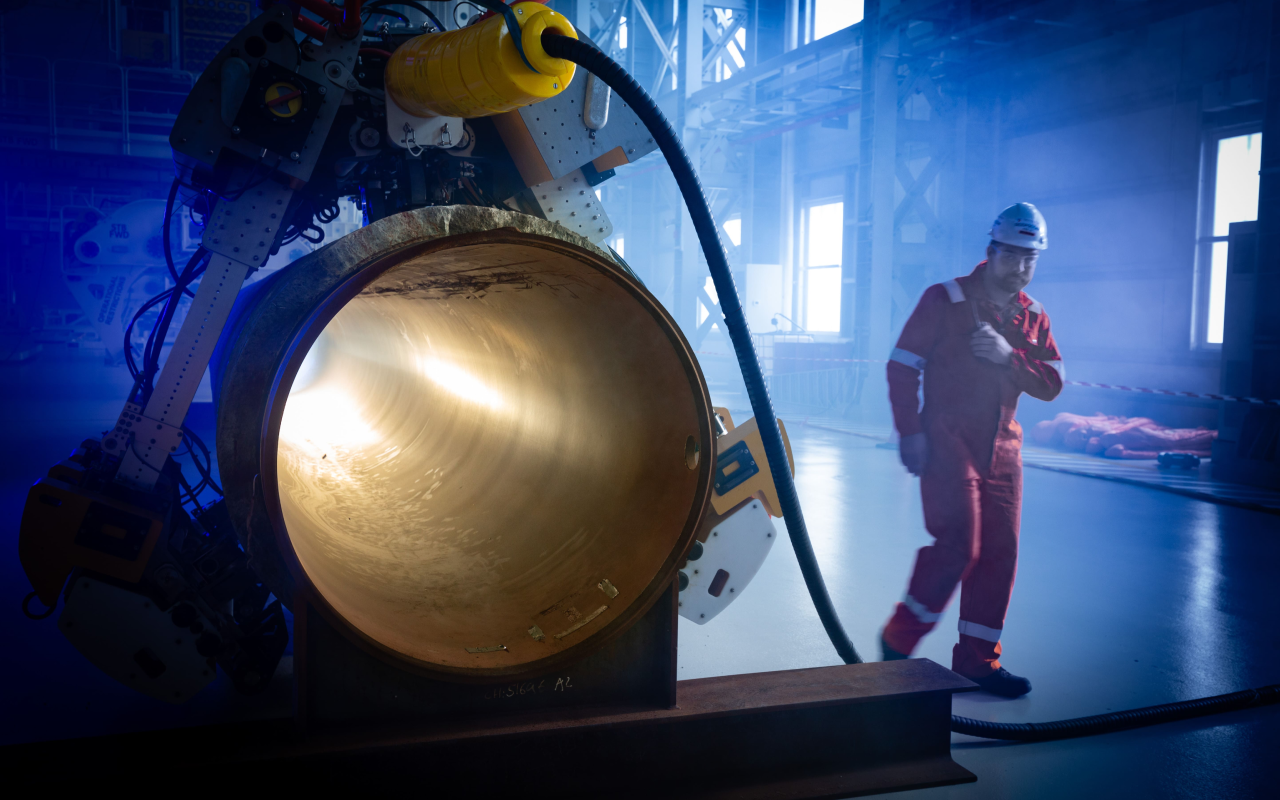

video-poster

Creating Value & Impact

ASSIST is poised to have a strong, positive impact on the oil and gas industry and the region across three key areas:

Asset Integrity

The subsea repair helps reduce pipeline exposure to seawater, protects onshore assets and eliminates the risk of leaks (by returning the pipeline back to its original state).

Technical Innovation

The diverless subsea launcher & receiver design already covers 36-inch and 48-inch pipes but can be replicated for smaller sizes, significantly reducing the investment required.

Competence Development

ASSIST has brought together many industry subsea expert companies and operations ensuring the development and retention of subsea repair competence and expertise for the local market.


Equipment

Handling Frames

1

  • Self Weight: 92 tons (air)

  • Handling Capacity: 150 tons each

  • Range: 10” - 48” (excluding CWC

  • Features: 5 motions for pipe manipulation (vertical, transverse, rotate, pitch, push/pull)

  • Operating Depth: 15m - 100m (rated up to 1,000m)

  • Operational Modes: Diverless, Diver assisted, ROV

  • Functions: Pipe alignment, pipe handling, pipe shifting

Welding Habitat

2

  • Self Weight: 65 tons (air) - habitat only
  • Range: 24” - 48”
  • Features: Norsok and IMCA compliant seahorse habitat for hyperbaric welding and hot-tapping
  • Operating Depth: 15m - 100m
  • Operational Modes: Diver assisted
  • Functions: Hyperbaric welding and hot tapping

Subsea Launcher & Receiver & Installation Tool

3

  • Self Weight: 102 tons (air) 48”
  • Range: 36” and 48” (Installation Tool can be used for other sizes)
  • Features: Allows pipe decommissioning on the seabed without reflooding and allows inline tool launch from subsea
  • Operating Depth: 15m - 100m
  • Operational Modes: Diverless, Diver assisted, ROV
  • Functions: Pipeline decommissioning, pipeline isolation

Coating Removal Tool

4

  • Self Weight: 1 ton (air) – Coating Removal Tool / 12 ton (air) – Tool Support Module
  • Range: 8” – 48” (excluding CWC)
  • Features: Coating removal with high pressure water jetting (1,200 bar)
  • Operating Depth: 2m – 100m (Rated up to 1,000m)
  • Operational Modes: Diverless, Diver assisted, ROV
  • Functions: Subsea coating removal (concrete, anti-corrosion coating, primer)

Topside & Subsea Ancillaries

5

  • Various Control and Power Distribution Containers
  • Various Offshore Workshop and Stores Containers
  • Launch and Recovery System
  • TMS
  • Sheave Connection Points -  36” & 48”
  • Scrapers
  • Isolation Tools -  36” & 48”
  • Winches and HPU’s (various sizes and functions)

Support Agreements

  • Marine Agreements for all marine and vessel services
  • Agreement for Pipeline Decommissioning & Recommissioning
  • Agreements for rental of Diamond Wire Cutters
  • Agreement for Saturation Diving and Hyperbaric Welding
  • Agreements for Isolation Services
For more information or to make an enquiry contact ASSIST.enquiries@dolphinenergy.com
